產品特點
2、輸出電流：0.2~2.2A
3、控製功能：脈衝+方向
4、細分：200~25600
5、控製信號接口電平：5~24VDC
6、機械尺寸：56*93*21mm
7、可根據客戶要求定製功能
|
型號 Mode |
兩相步進草莓视频污黄在线观看SD-422R |
|
輸入電壓 Power Supply |
8~36 VDC |
|
輸出電流 Output current |
0.2~2.2A |
|
控製功能 Control Modes |
脈衝+方向 |
|
細分 Subdivisions |
200~25600 |
|
控製信號接口電平 Control Signal Voltage |
5-24VDC |
|
機械尺寸 Domensions |
56*93*21mm |
可定製型號
|
型號 Model |
功能說明 Function description |
|
SD-422R |
脈衝+方向（雙脈衝需定製型號SD-422RW） |
|
SD-422RC |
IO控製 |
|
SD-422RV |
IO控製+電位器調速 |
|
SD-422RA |
脈衝+方向 報警輸出 |
★ A：報警輸出； ★C：IO控製 ；★ V：電位器調速 ；★W：雙脈衝
報警代碼
綠色LED為電源指示燈，草莓视频污黄在线观看接通電源時，綠燈閃爍；切斷草莓视频污黄在线观看電源時，綠燈熄滅。
紅色LED為故障指示燈，出現故障時，紅燈周期性循環閃爍；故障清除後，紅燈熄滅。
草莓视频污黄在线观看正常工作。紅燈閃爍次數代表不同的故障，具體關係如下：
|
LED燈狀態 |
草莓视频污黄在线观看狀態 |
|
綠燈常亮 |
草莓视频APP免费看運行中 |
|
綠燈閃爍 |
草莓视频APP免费看空閑 |
|
1紅+1綠 |
相位過流 |
|
2紅+1綠 |
草莓视频APP免费看繞組開路 |
|
3紅+1綠 |
草莓视频污黄在线观看過壓 |
|
4紅+1綠 |
草莓视频污黄在线观看欠壓 |
|
5紅+1綠 |
其他 |
指示燈引腳功能說明
|
符號 |
功能 |
注釋 |
|
PWR ALM |
故障及電壓指示燈 |
詳見報警代碼表 |
|
PUL+ |
脈衝/電平信號光電隔離正端 |
接信號、電源，均可驅動， 輸入電壓範圍5˜24V |
|
PUL- |
脈衝/電平信號光電隔離負端 |
下降沿有效，每當脈衝由高變低時草莓视频APP免费看走一步，脈衝寬度>2.5µs |
|
DIR+ |
方向信號光電隔離正端 |
接電源，輸入電壓範圍+5v˜24v |
|
DIR- |
方向信號光電隔離負端 |
用於改變草莓视频APP免费看轉向，脈衝寬度>2.5µs |
|
EN+ |
草莓视频APP免费看釋放信號光電隔離正端 |
接信號、電源，均可驅動，輸入電壓範圍5˜24V |
|
EN- |
草莓视频APP免费看釋放信號光電隔離負端 |
有效（低電平）時關斷草莓视频APP免费看線圈電流，草莓视频APP免费看處於自由狀態 |
|
V+ |
電源正極 |
DC:8˜36V(注意不要接反) |
|
V- |
電源負極 |
|
電流表
|
峰值 |
SW1 |
SW2 |
SW3 |
SW4 |
|
0.2A |
ON |
ON |
ON |
ON |
|
0.3A |
OFF |
ON |
ON |
ON |
|
0.4A |
ON |
OFF |
ON |
ON |
|
0.5A |
OFF |
OFF |
ON |
ON |
|
0.6A |
ON |
ON |
OFF |
ON |
|
0.7A |
OFF |
ON |
OFF |
ON |
|
0.8A |
ON |
OFF |
OFF |
ON |
|
0.9A |
OFF |
OFF |
OFF |
ON |
|
1.0A |
ON |
ON |
ON |
OFF |
|
1.1A |
OFF |
ON |
ON |
OFF |
|
1.2A |
ON |
OFF |
ON |
OFF |
|
1.4A |
OFF |
OFF |
ON |
OFF |
|
1.6A |
ON |
ON |
OFF |
OFF |
|
1.8A |
OFF |
ON |
OFF |
OFF |
|
2.0A |
ON |
OFF |
OFF |
OFF |
|
2.2A |
OFF |
OFF |
OFF |
OFF |
細分表
|
細分 |
SW5 |
SW6 |
SW7 |
SW8 |
|
200 |
ON |
ON |
ON |
ON |
|
400 |
OFF |
ON |
ON |
ON |
|
800 |
ON |
OFF |
ON |
ON |
|
1600 |
OFF |
OFF |
ON |
ON |
|
3200 |
ON |
ON |
OFF |
ON |
|
6400 |
OFF |
ON |
OFF |
ON |
|
12800 |
ON |
OFF |
OFF |
ON |
|
25600 |
OFF |
OFF |
OFF |
ON |
|
1000 |
ON |
ON |
ON |
OFF |
|
2000 |
OFF |
ON |
ON |
OFF |
|
4000 |
ON |
OFF |
ON |
OFF |
|
5000 |
OFF |
OFF |
ON |
OFF |
|
8000 |
ON |
ON |
OFF |
OFF |
|
10000 |
OFF |
ON |
OFF |
OFF |
|
20000 |
ON |
OFF |
OFF |
OFF |
|
25000 |
OFF |
OFF |
OFF |
OFF |
IO控製模式時速度設定表請點擊“外形尺寸”查看。

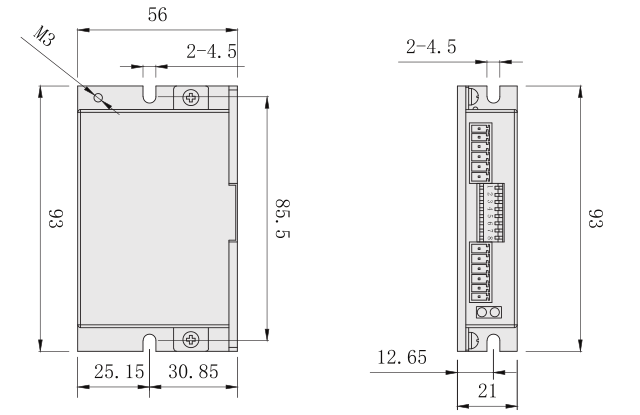

外形尺寸圖（單位：mm）
IO控製模式時速度設定表
|
速度 |
SW5 |
SW6 |
SW7 |
SW8 |
|
5 |
ON |
ON |
ON |
ON |
|
10 |
OFF |
ON |
ON |
ON |
|
15 |
ON |
OFF |
ON |
ON |
|
30 |
OFF |
OFF |
ON |
ON |
|
60 |
ON |
ON |
OFF |
ON |
|
90 |
OFF |
ON |
OFF |
ON |
|
120 |
ON |
OFF |
OFF |
ON |
|
150 |
OFF |
OFF |
OFF |
ON |
|
180 |
ON |
ON |
ON |
OFF |
|
210 |
OFF |
ON |
ON |
OFF |
|
240 |
ON |
OFF |
ON |
OFF |
|
300 |
OFF |
OFF |
ON |
OFF |
|
400 |
ON |
ON |
OFF |
OFF |
|
500 |
OFF |
ON |
OFF |
OFF |
|
650 |
ON |
OFF |
OFF |
OFF |
|
800 |
OFF |
OFF |
OFF |
OFF |
